BeoGram TX2

BeoGram TX2

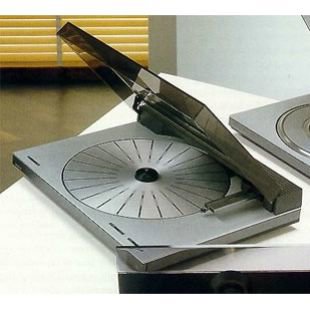

This tangential record player was a classic example of Bang & Olufsen's attention to detail. It had automatic registration of record size and speed, and seven repeat functions. The turntable was based on Beogram 5005. There was also the benefit of Bang & Olufsen's patented chassis suspens [...]

Overview

This tangential record player was a classic example of Bang & Olufsen's attention to detail. It had automatic registration of record size and speed, and seven repeat functions. The turntable was based on Beogram 5005.

There was also the benefit of Bang & Olufsen's patented chassis suspension and special tone arm design, which prevented vibrations from reaching the cartridge during play thus enhancing your pleasure and protecting your records.

The US TX2 had a 110V transformer but had no switching for other electrical voltages. As a comparison, most European models had an inbuilt transformer to allow for switching between other voltages.

Product Details

Type Number: 5911, 5913
Release Date: 1985, 1986, 1987, 1988, 1989, 1990, 1991
Designer: Jacob Jensen
Colour / Finish: Silver
Cartridge Type: MMC4
Beolink: DataLink

Product Specification

Wow and flutter, DIN: 80 dB
Rumble DIN unweighted: > 55 dB
Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.2 %

Power supply:
5911: 220V
5913: 120V
Power consumption: < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight: 5.3 kg

Pickup: MMC 1-5

Features:
Tangential-tracking
Electronic Servo-Drive
Recommended stylus pressure: 1,2g
Search function – backwards & forwards
Pickup sold as extra (depending on choice from MMC 1 – 5 range)
Link compatibility: Data Link

Downloads & Manuals

Documents & Downloads
Document Type Required Action
BeoGram TX25911,5913
Service Manual Silver Log in
Beogram TX25911, 5913
Service Manual Silver Log in
