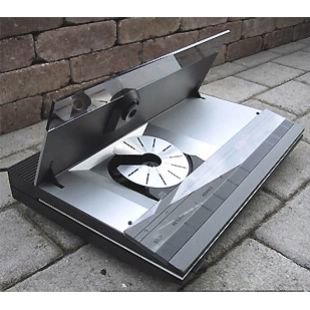

BeoGram CD 3300

BeoGram CD 3300

It's a fact that not all compact disc players are ideal for all types of music. Some of them seem to highlight certain parts of the frequency range. But you can be confident that Bang & Olufsen's CD players never discriminate between rock and roll and classical. They smooth over faults in the CD [...]

Overview

It's a fact that not all compact disc players are ideal for all types of music. Some of them seem to highlight certain parts of the frequency range. But you can be confident that Bang & Olufsen's CD players never discriminate between rock and roll and classical. They smooth over faults in the CD very cleverly too, because not all compact discs are perfect. So it's just as well that Bang & Olufsen CD players are!

Beogram CD 3300 was part of Beosystem 3300 although it could have been used as a stand-alone item.

Product Details

Type Number: 5141, 5142, 5143, 5145
Release Date: 1987, 1989, 1990
Designer: Jacob Jensen
Colour / Finish: Grey
Beolink: DataLink

Product Specification

Frequency range: 3 – 20,000 Hz +/- 0.3 dB
Signal-to-noise ratio: > 96 dB / 100 dB A-weighted
Dynamic range: > 96 dB
Harmonic distortion incl. noise < 0.003% at 0 dB;
94 dB
Channel difference: 20,000 Hz > 50 dB
Phase error between L and R 0 degree at 20 – 20,000 Hz
Output analogue: 2 V RMS at 0 dB

Power supply:
5141: 220V
5142: 240V
5143: 120V
5145: 240V
Power consumption: 30 W
Dimensions W x H x D: 42 x 7.5 x 31cm
Weight: 4.9 kg

Downloads & Manuals

Documents & Downloads
Document Type Required Action
Servo PCB30 Beogram CD 3300
Service Manual Silver Log in
Beogram CD 33005141, 5142, 5143 5144, 5145
Service Manual Silver Log in
