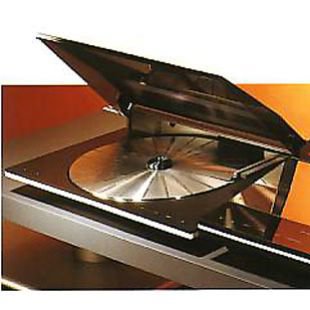

To complement Beocenter 8500, a dedicated record player - Beogram 8500 - was designed specifically for this particular hi-fi centre.
The technical aspects of Beogram 8500 were identical to Beogram 9500; it was only the finish that was different which was coloured soft grey to complement the rest of the system.
Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.2 %
Wow and flutter, DIN: 80 dB
Rumble DIN unweighted: > 55 dB
Power supply:
5971: 220 V
5973: 100 V
Power consumption: < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.5cm
Weight 5.3 kg
| Document | Type | Required | Action |
|---|---|---|---|
Beogram 85005971,5972,5973,5974 |
Service Manual | Silver | Log in |
