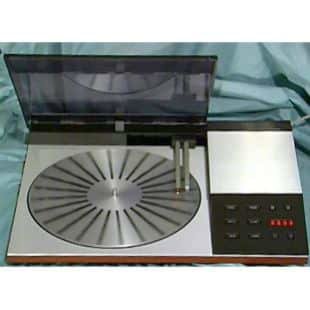

BeoGram 6006

BeoGram 6006

This deck was the Beogram designed for use with the Beomaster 6000. To all intents the same deck as the Beogram 8000, it had a MMC20EN cartridge and black keys to differentiate it from its more expensive brother. Not replaced directly when the newer cartridges were released as the Beogram 6002 was [...]

Overview

This deck was the Beogram designed for use with the Beomaster 6000.
To all intents the same deck as the Beogram 8000, it had a MMC20EN cartridge and black keys to differentiate it from its more expensive brother. Not replaced directly when the newer cartridges were released as the Beogram 6002 was belt drive rather than tangential drive.

This was a confusing product as it offered the same performance as the Beogram 8000 but was cheaper due to the lesser cartridge. It was not a big seller and it was not surprising that the range was rationalised by keeping a top performing Beogram in the Beogram 8002 and a substantially simpler deck in the Beogram 6002.

Product Details

Type Number: 5623, 5625, 5626, 5627
Release Date: 1981, 1982, 1983
Designer: Jacob Jensen
Colour / Finish: Teak, Rosewood, White
Cartridge Type: MMC20EN
Beolink: DataLink

Product Specification

Wow and flutter DIN: 65 dB
Rumble DIN unweighted: > 45 dB
Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.02 %, +/- 3 %: < 0.04°

Power supply:
5623: 120V
5625: 220V
5626: 240V
5627: 240V
Power consumption: 15 W
Dimensions W x H x D: 49 x 9 x 37.5cm
Weight: 9 kg

Pickup: MMC 20 EN
Tracking force: 12 mN / 1.2 g

Downloads & Manuals

Documents & Downloads
Document Type Required Action
BeoGram 60065621,5622,5623,5624,5625,5626,5627
Service Manual Silver Log in

Frequently Asked Questions

No FAQs available.
